Guide for creating connection with Google AI Studio Imagen3/Vertex AI
Pabbly Connect Team•Updated Aug 19, 2026•2 min read
Guide for creating connection with Google AI Studio Imagen3 This documentation provides a detailed, step-by-step guide for creating connection with Google AI Studio Imagen3 account with Pabbly Connect. Following these instructions will enable you to establish a seamless connection between the two platforms. Authentication Steps: Follow these steps to obtain the necessary Client ID and Client Secret from Google Cloud Console Obtain Client ID and Client Secret:

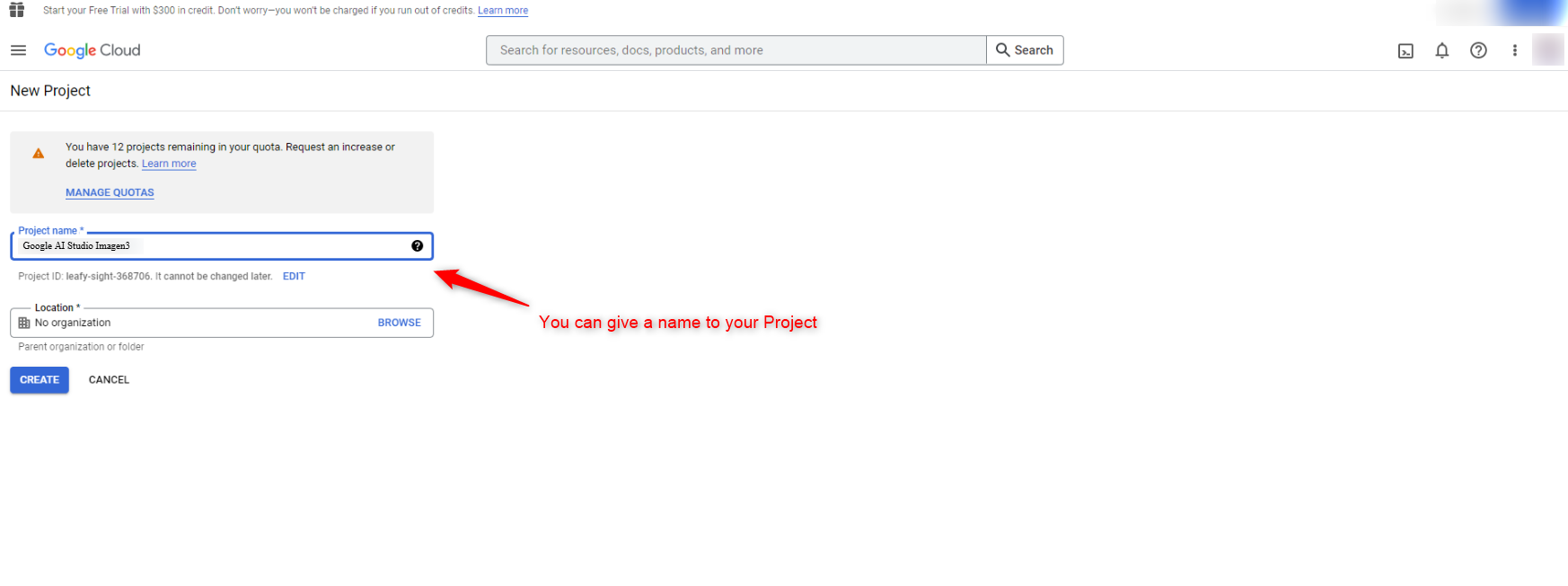

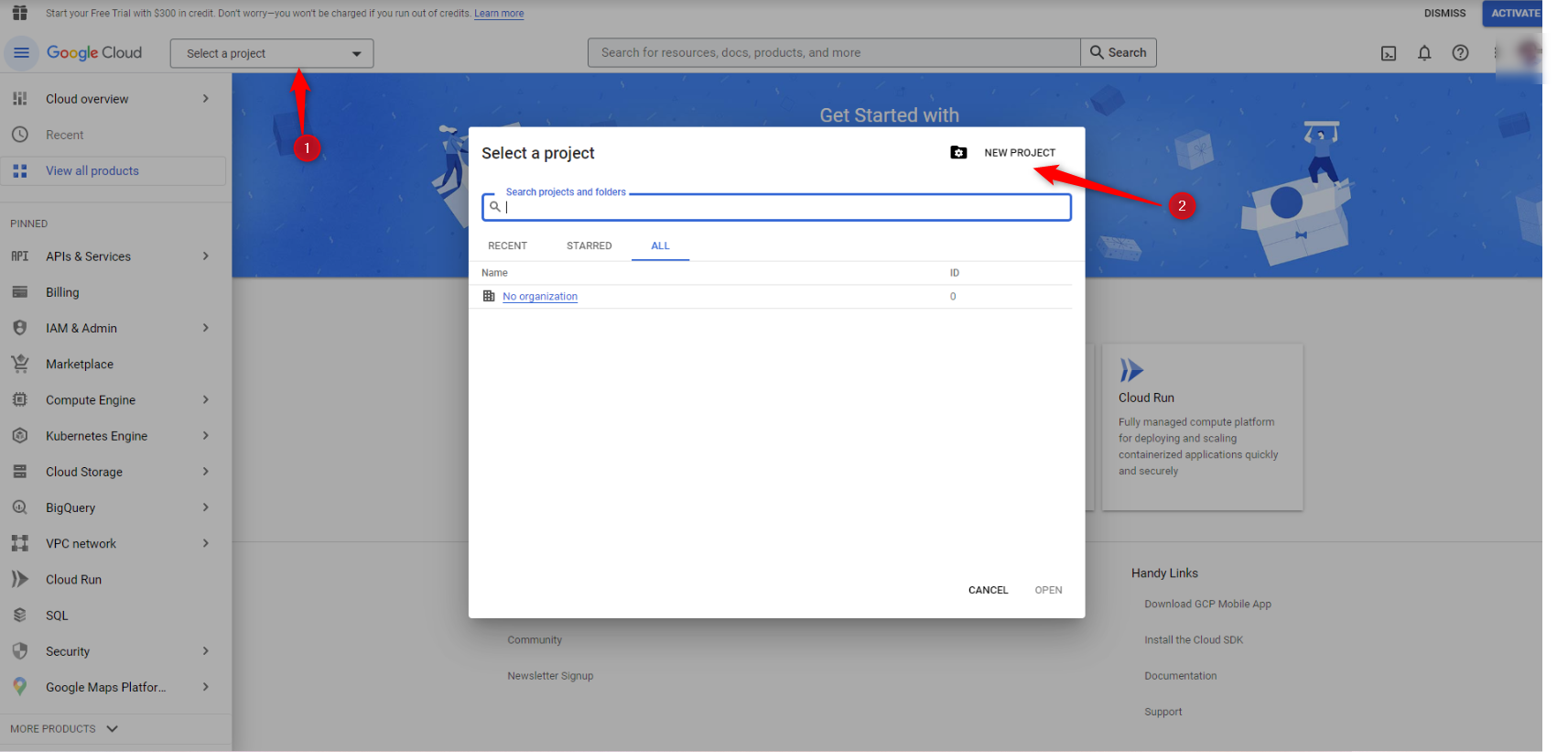

Now create a new project or select an existing project as shown below

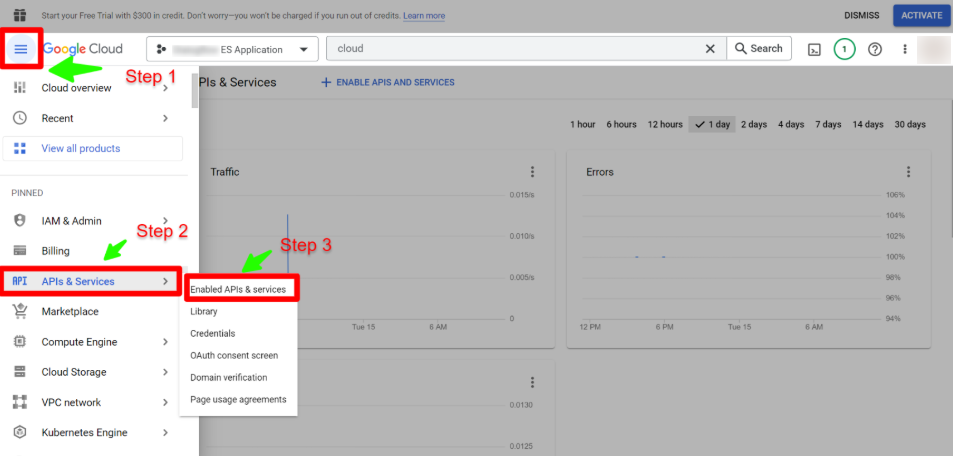

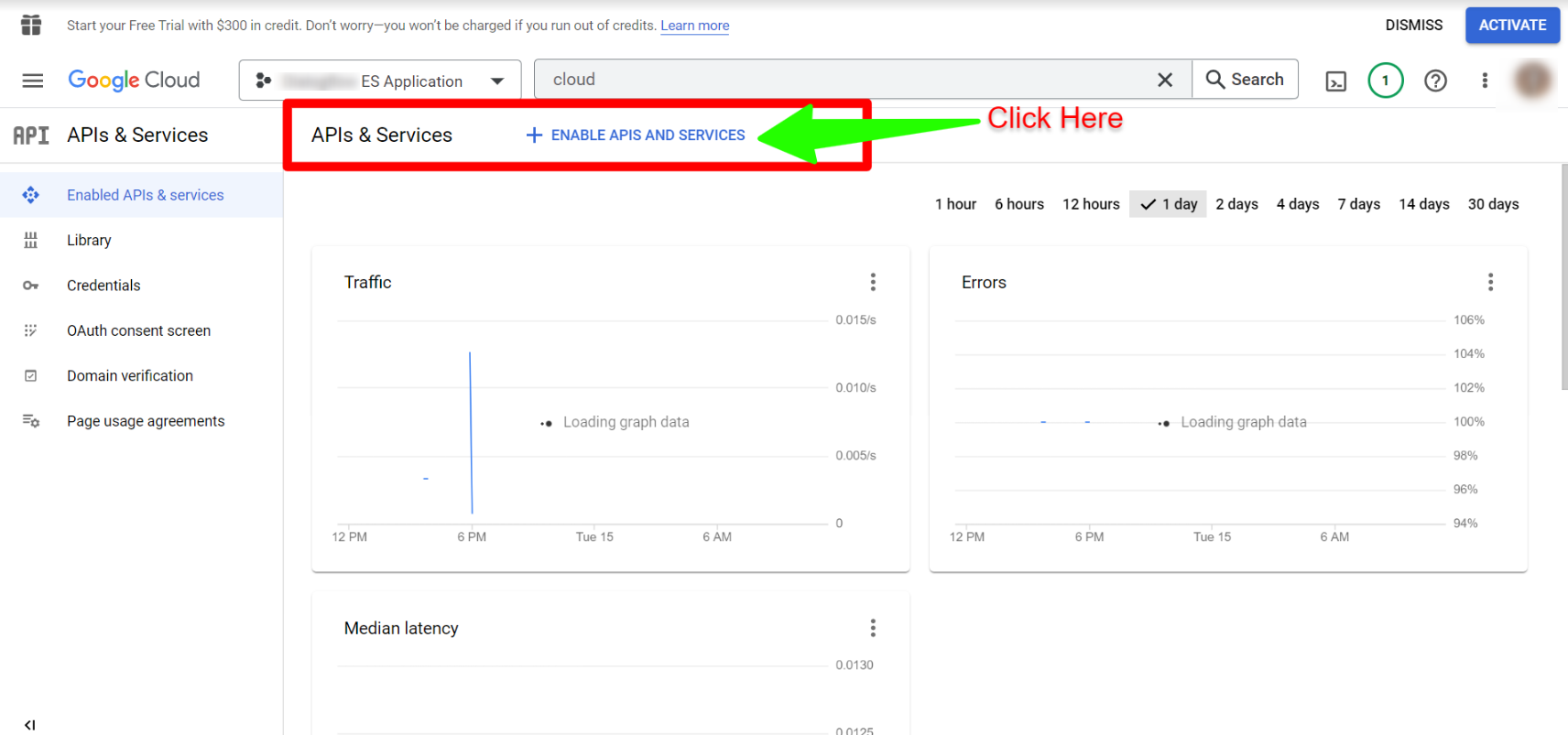

Navigate to "APIs & Services" and select "Library."

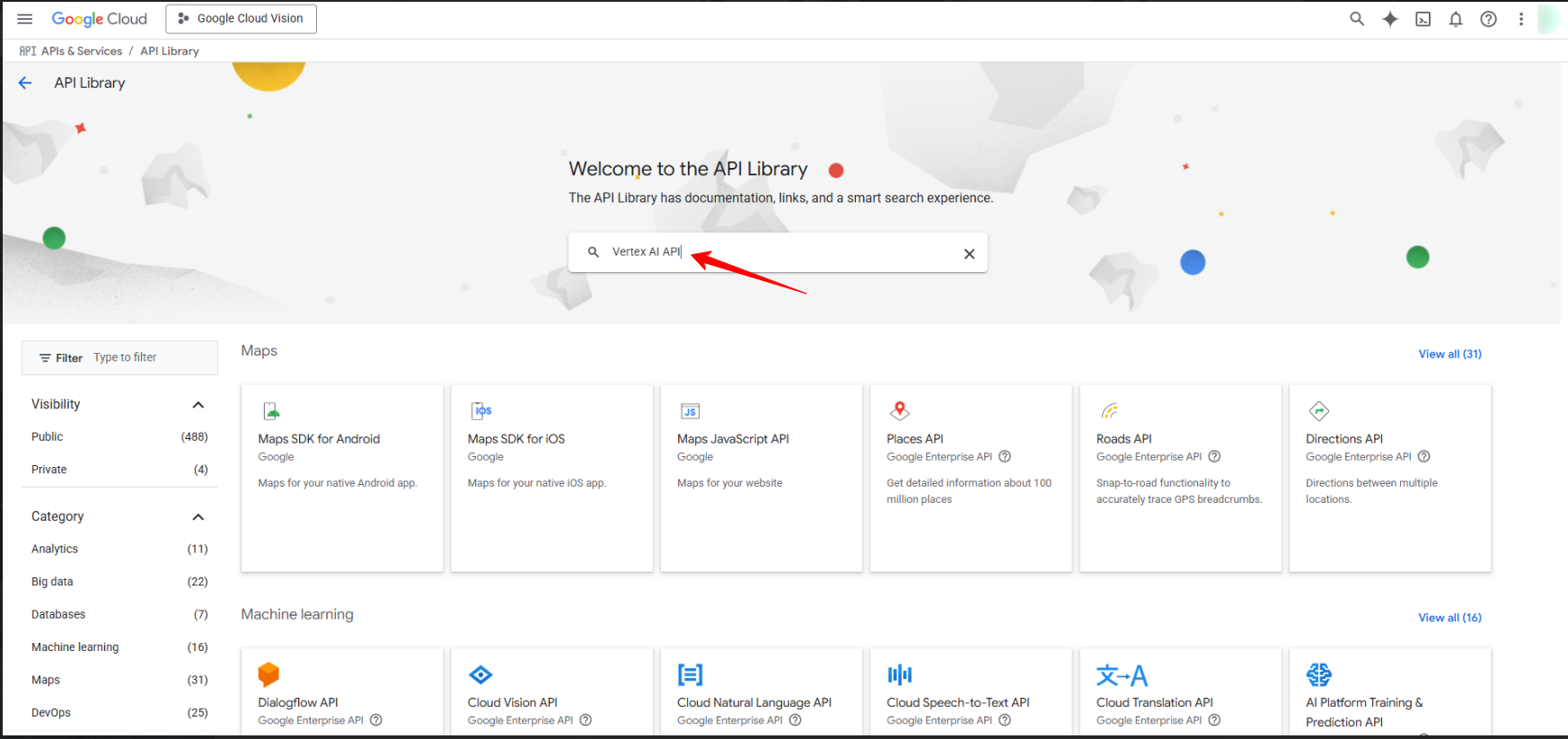

Search for and enable the following required APIs: Vertex AI API

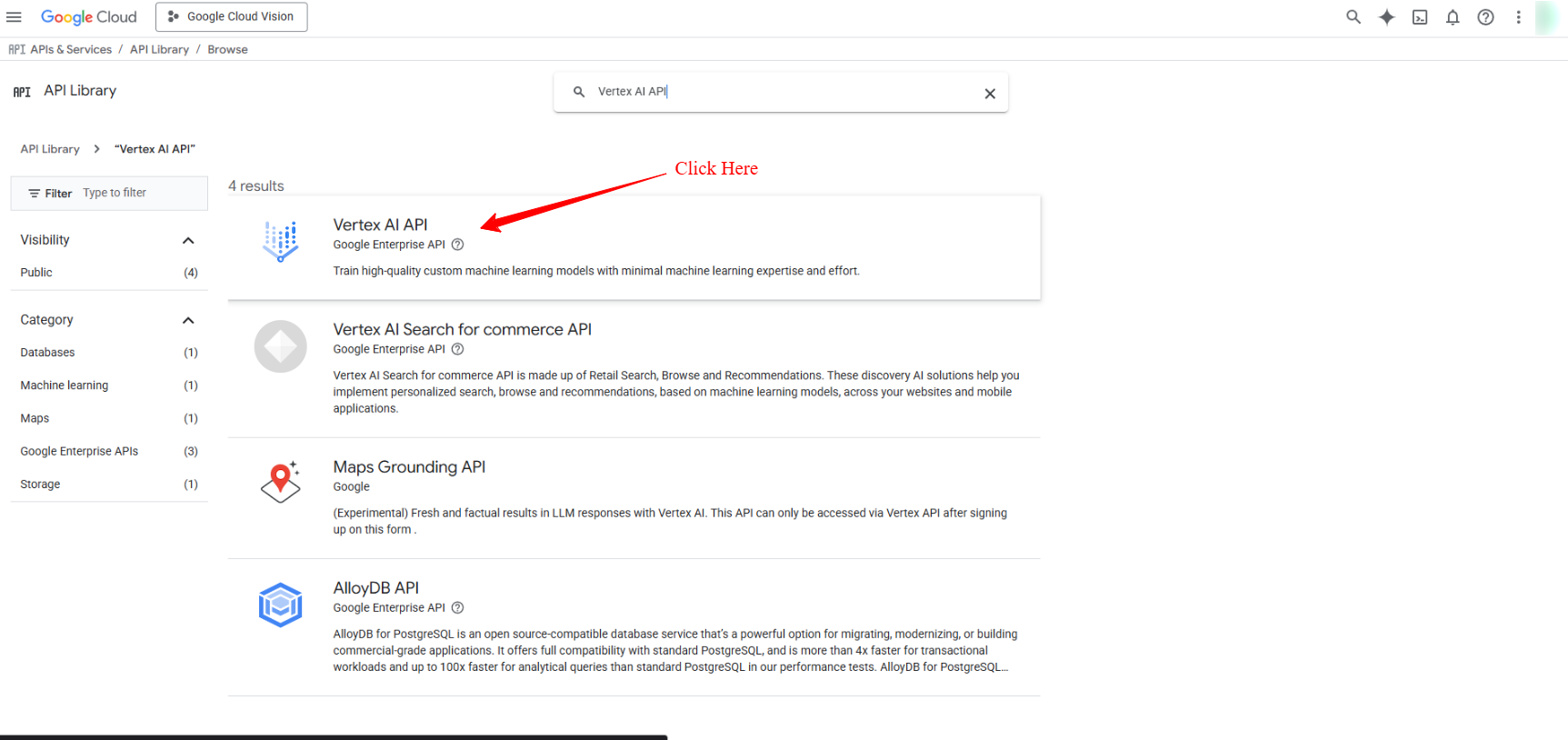

As you type, the desired service option should display. Click on the API or service you wish to connect with Pabbly Connect.

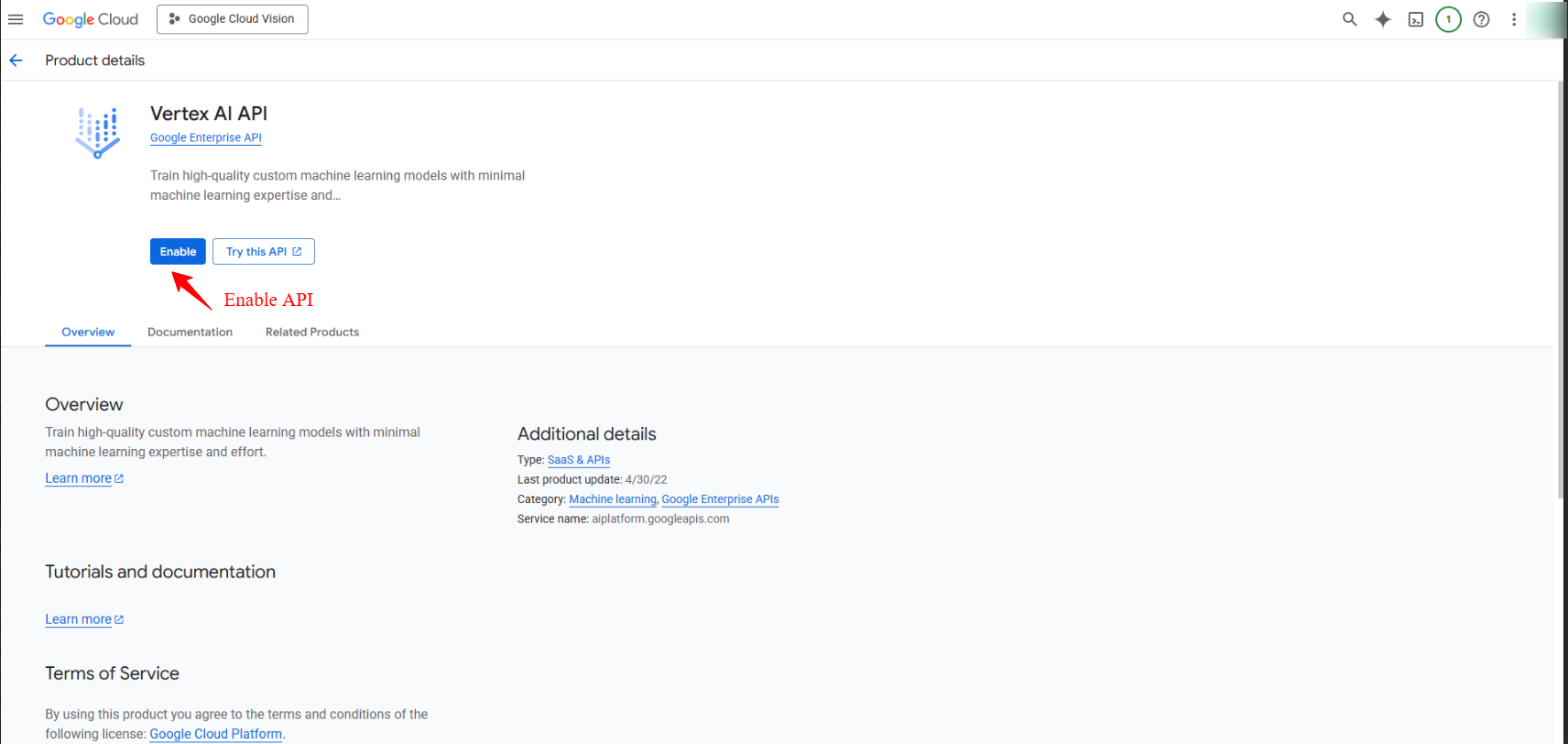

Click the "ENABLE" button to enable the selected API. After enabling it will look like this:

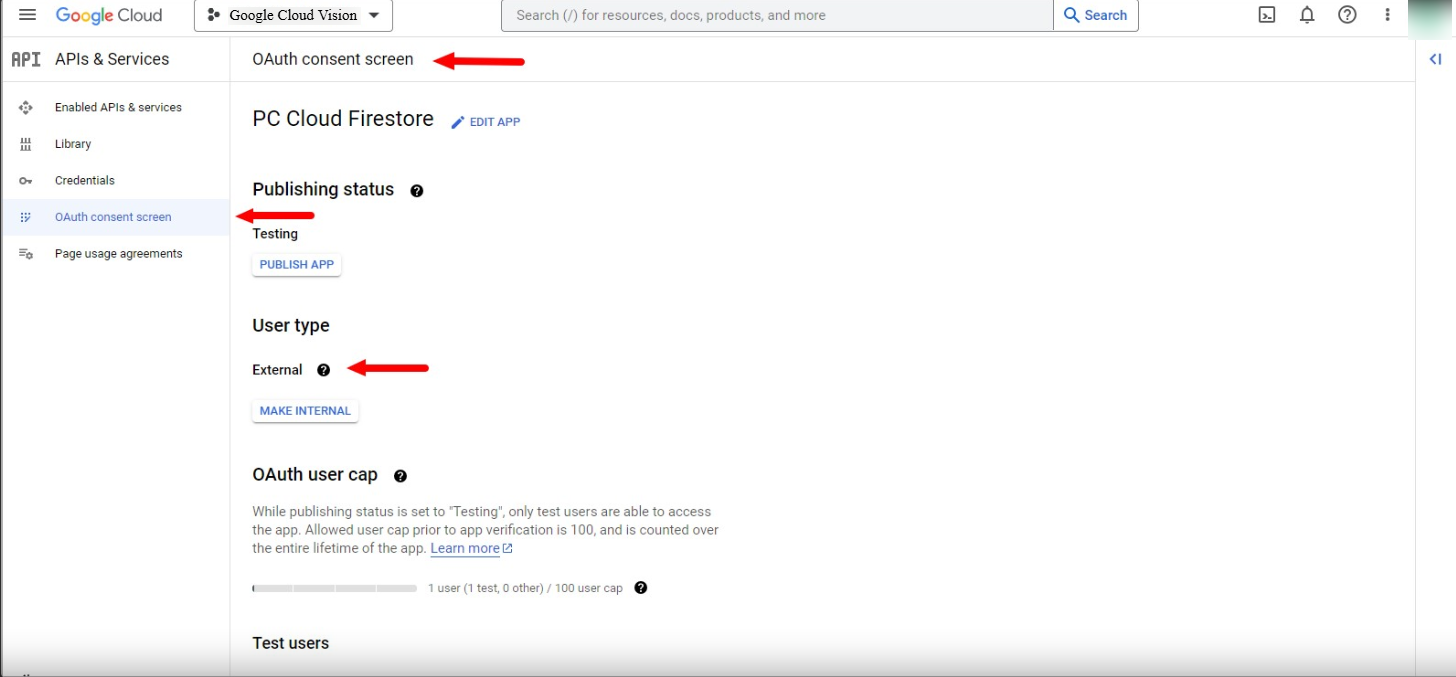

Open the OAuth consent screen settings.
Choose the "External" option, add test users, and click "CREATE."
Note: Selecting this option will not incur any charges. For further details, refer to Google's exceptions to verification requirements.
Fill in the required fields as follows, and then click the "Save" button.
Application name: Enter the name of the application requesting consent.
Scopes for Google APIs: Click "Add Scope" to open the dialog and add the required scopes. SERVICE/APIREQUIRED SCOPES
https://www.googleapis.com/auth/cloud-platform - Vertex AI API
Note: There is no need to submit your consent screen and application for verification by Google. Simply click the "Save" button after filling in the required fields on the same page.

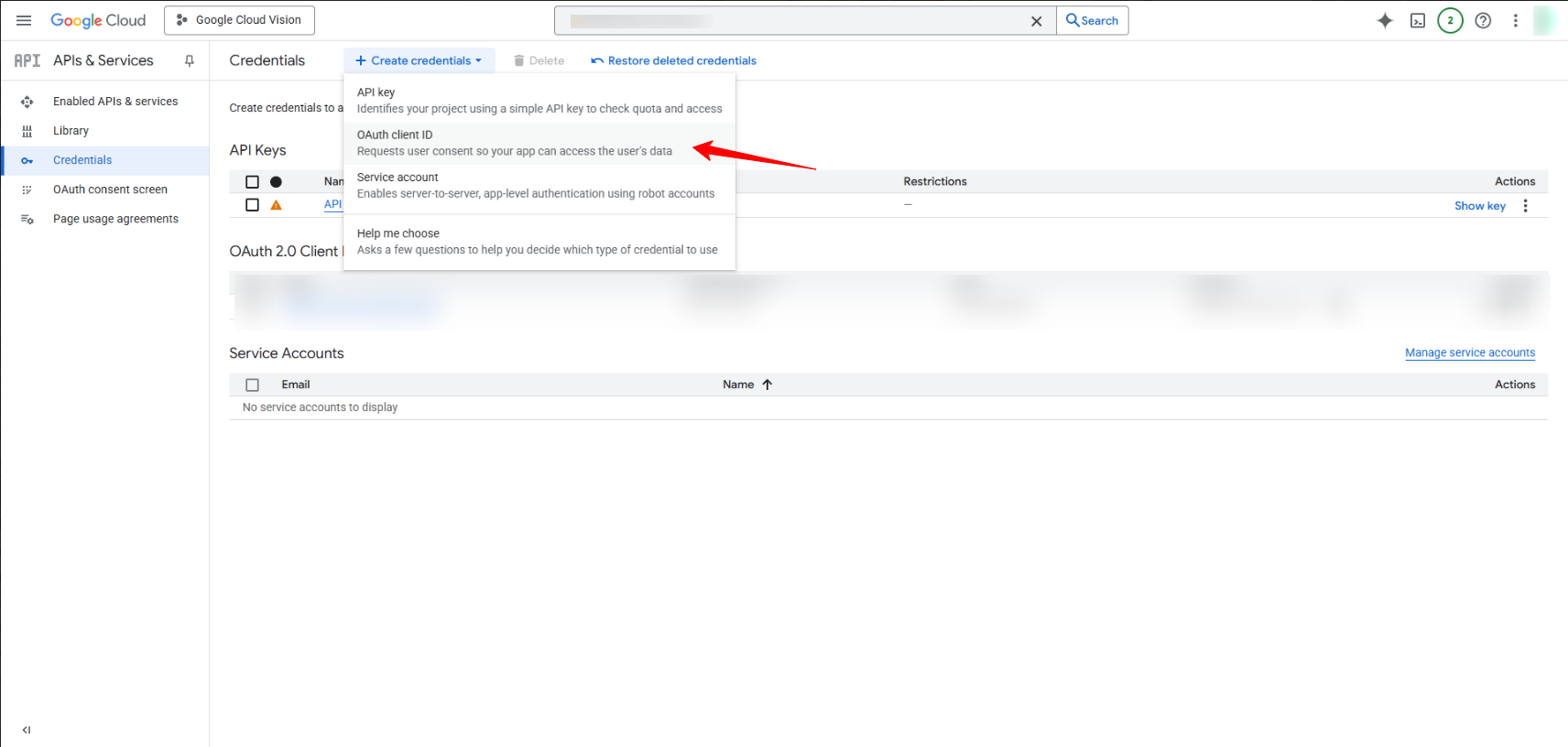

Proceed to "Credentials." Click "+CREATE CREDENTIALS" and select "OAuth Client ID."

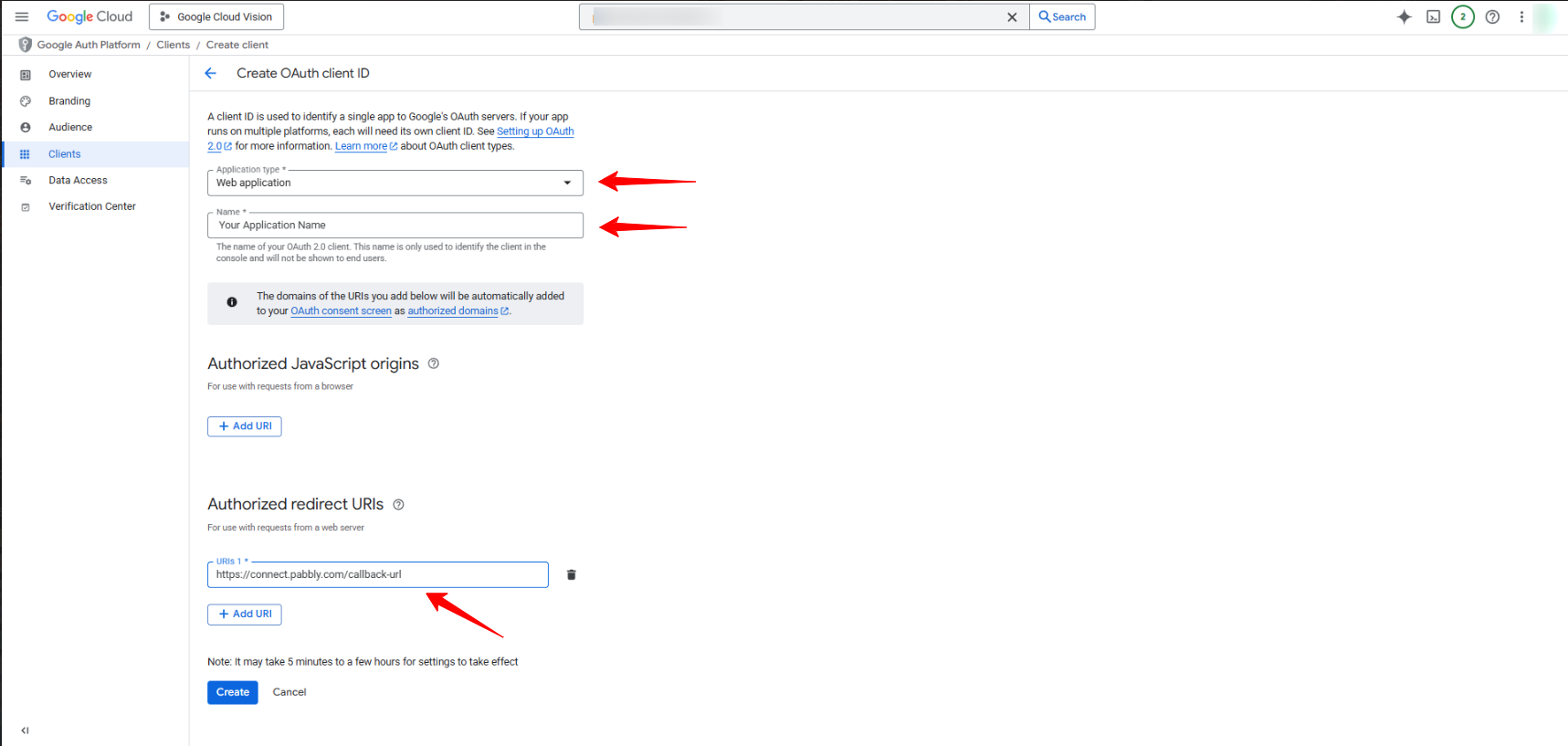

Fill in the necessary fields as follows and then click "CREATE". Application type: Web application Name: e.g. Pabbly Connect Authorized redirect URIs: https://connect.pabbly.com/callback-url (Copy the provided URL and insert it into the designated section as specified.).

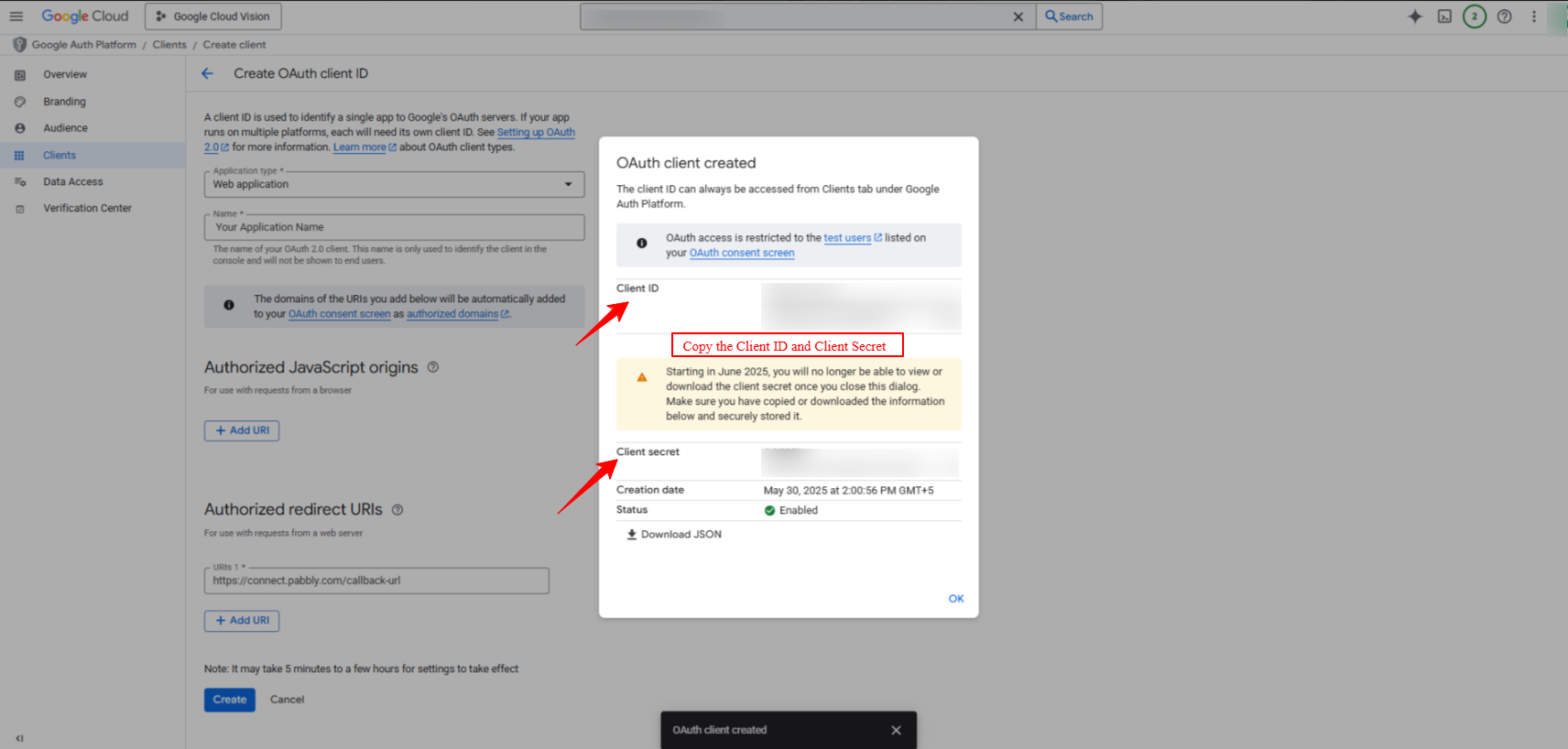

Copy your Client ID and Client Secret values and store them in a safe place.

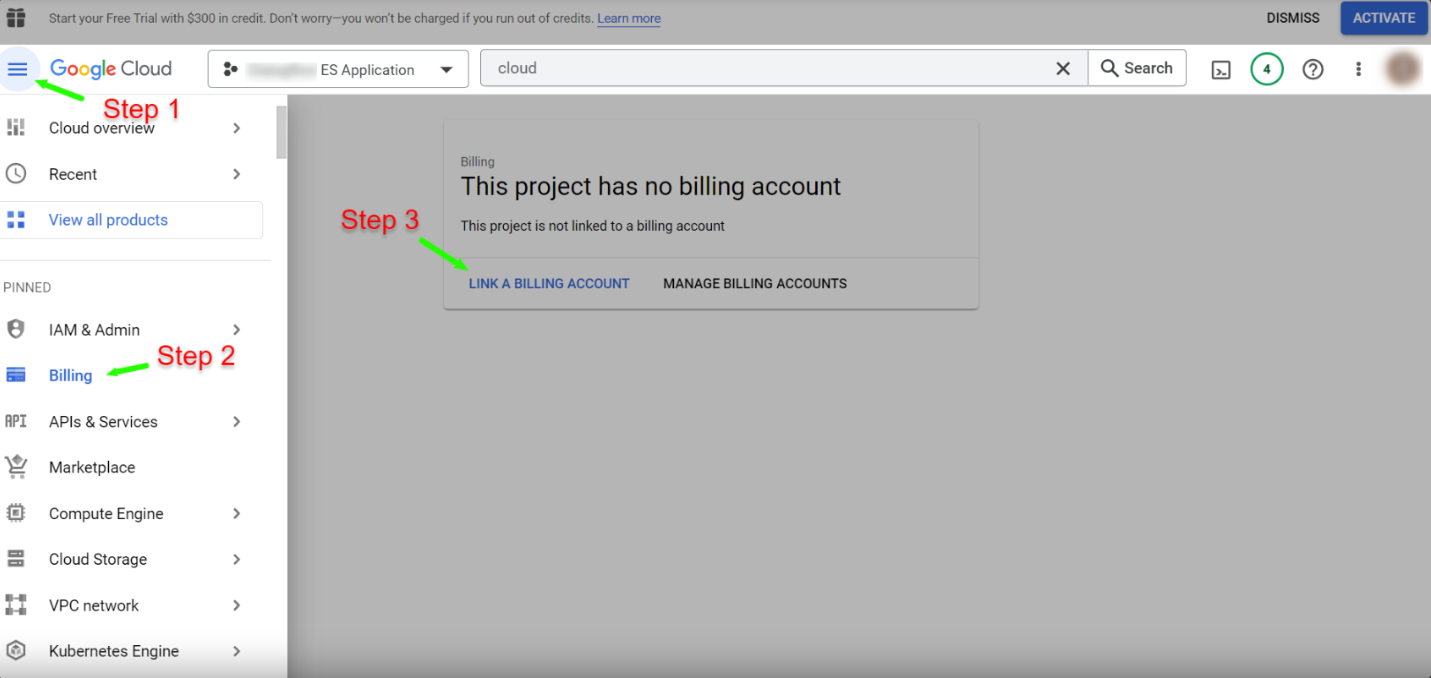

Make sure you're enabling the Google Cloud Billing else you're Google Cloud Vertex APIs won't work out.
Integration Steps: 1. Select "Google AI Studio (Imagen3)" Action:

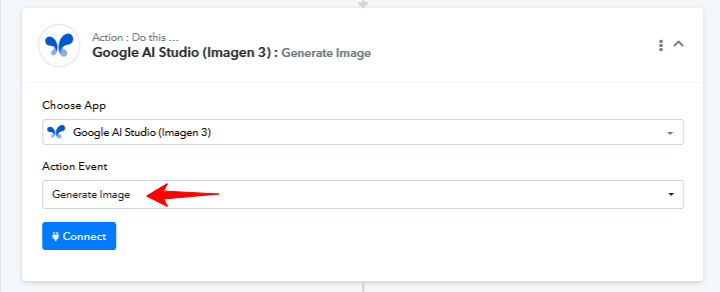

Within Pabbly Connect, navigate to the action step and choose "Generate Image" as the action you wish to perform.
2. Configure the Connection:

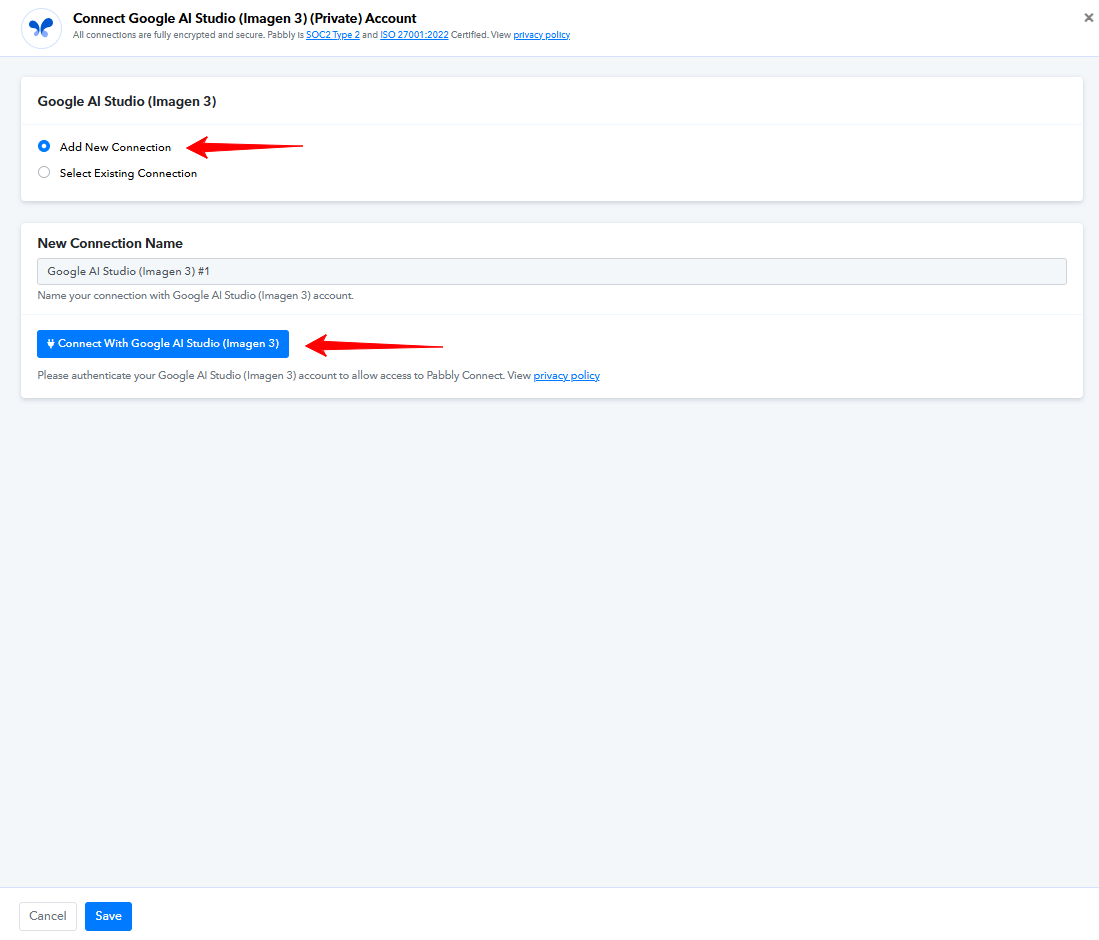

To establish a connection, select "Add New Connection" and log in to your Google Cloud Platform account. If you already have an existing connection, you can opt for "Select Existing Connection" instead.

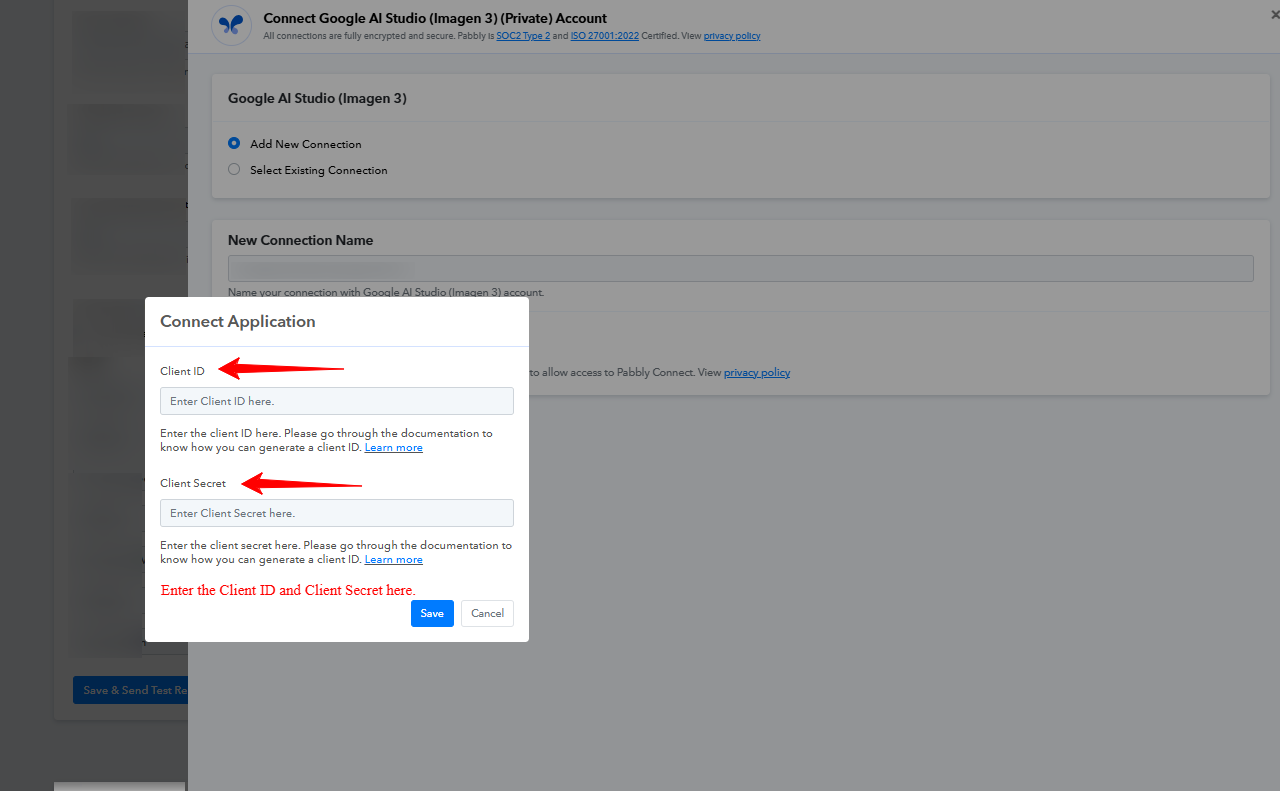

Now Enter the "Client ID" and "Client Secret" to set up the connection.
