How to create an action to upload a file (Binary Upload)

API to Upload File (Binary Upload) Documentation​

This document provides an overview of the API to upload file, explaining its purpose, the functionality of each section, and how to use it to send HTTP requests.

Purpose of the API​

This API is designed to:

1. Act as a middleware service, processing incoming requests.
2. Validate requests using an API key.
3. Retrieve a file from a specified URL and forward it, along with other data, to a designated endpoint.

This API helps secure the data transfer by validating incoming requests and facilitating the controlled forwarding of headers and files.

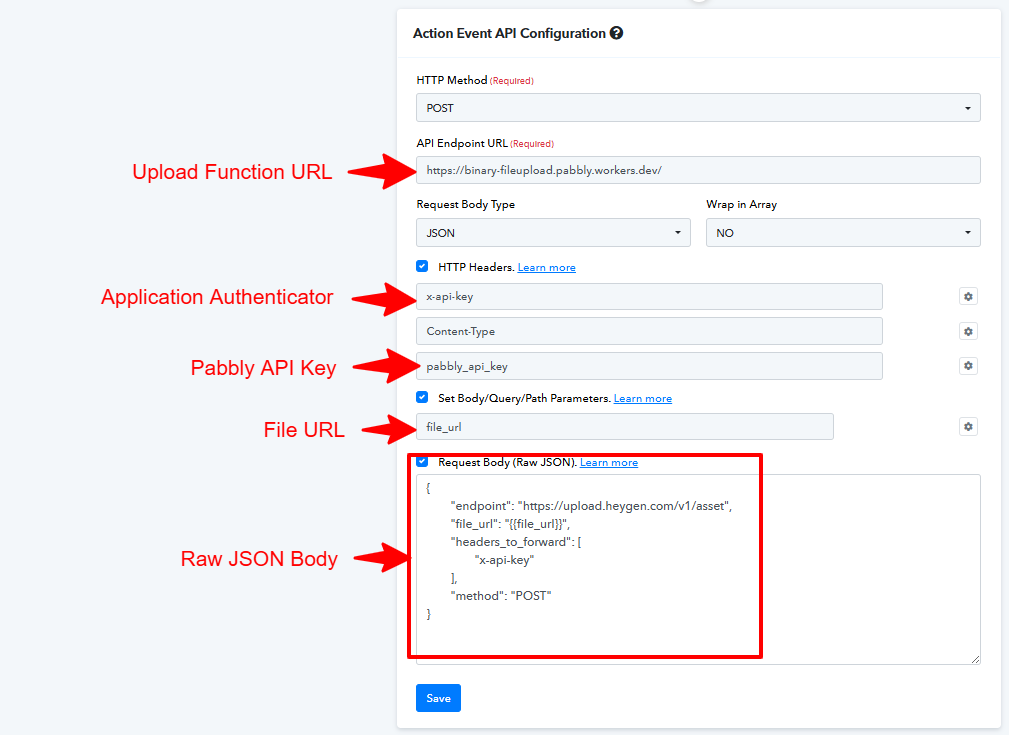

Step1: Configure the HTTP Request in Pabbly​

• Navigate to the Pabbly Connect Developer platform and go to the "Actions" section to set up the action.
• Method: Set the method as POST.
• URL: Enter the URL "https://binary-fileupload.pabbly.workers.dev/ " in the "API Endpoint URL" section.
• Headers:
  • Add a header pabbly_api_key with the value set to our API key.
  • Set Content-Type to application/json.
• Body: Use JSON format to include the required parameters.

Step 2: Enter the JSON body.
{
"endpoint": "https://upload.heygen.com/v1/asset",
"file_url": "{{file_url}}",
"headers_to_forward": ["x-api-key"],
"method": "POST"
}
JSON Body Parameters:
endpoint: It is the API endpoint of the application you want to configure.
file_url: It is the file URL entered by the user.
Headers_to_forward: Enter the array of headers or a single string comma-separated headers in a single string.
E.g. "headers_to_forward": ["Header1", "Header2", "Header3"] or
"headers_to_forward": "Header1, Header2, Header3".
method: The HTTP method to use when forwarding the file (POST, PUT, etc.).
content_type: You can provide the content type if it is fixed for the entire endpoint. If it is not fixed then do not include it in the JSON Body as the worker code will fetch it automatically from the file_url.
Sample cURL: file_url parameter conditions:

• The file_url can be a direct URL. E.g.

  https://imgur.com/knj40OH

• The file_url can be a direct downloadable drive URL. E.g. https://drive.google.com/uc?export=download&id=1Pn5_9X1JK08t7mw5LR6CnyNes_aAMViy or
  https://docs.google.com/spreadsheet...TCfbyoz92Jcl0xyt0cRecM3Ecw/export?format=xlsx

• The file_url can be a direct downloadable Dropbox URL. In the case of a normal Dropbox URL, set the value of the ‘dl’ parameter to 1. E.g. https://www.dropbox.com/scl/fi/orsk...ey=4z45zix70yzh5p4sv9cj4f2os&st=2os6wma0&dl=1

NOTE:
In the case of Canva. The filename is to be passed as Base64. To do so, we can either take the name as encoded base64 from the user or we can create the same with the help of Select Transform and Multistep action as shown below: Here, the Base64 converted filename is passed as from the action event.
