How to Set-Up the Integration Based on Auth Type OAuth 1.0
Pabbly Connect Team•Updated Aug 14, 2026•3 min read
This documentation provides a comprehensive, step-by-step guide to understanding the OAuth 1.0 setup process. For example purposes, we have chosen "Tumblr" as our focus application.

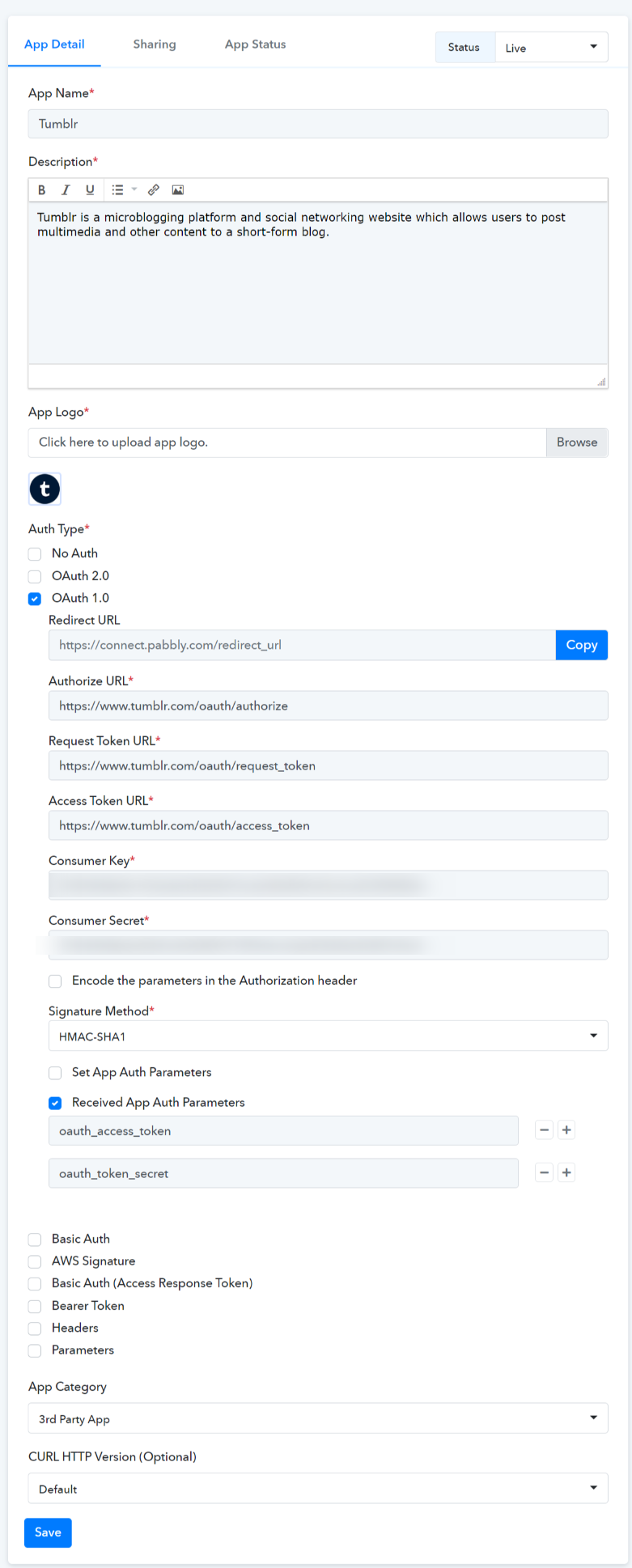

App Details and Auth Configuration:

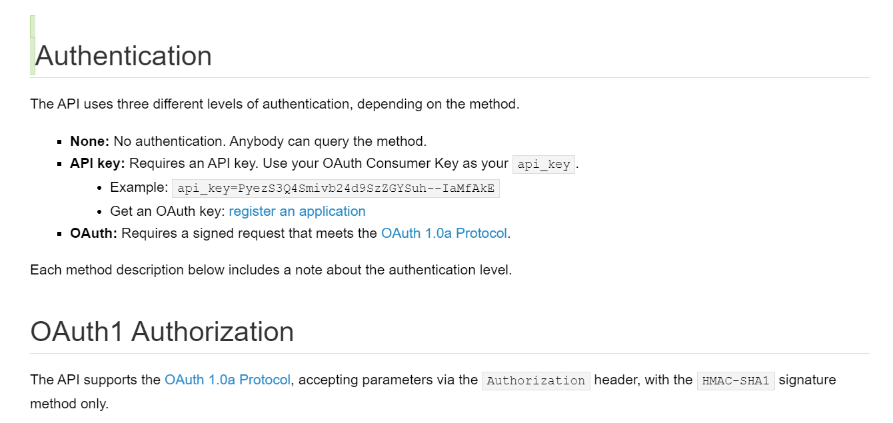

👉We followed the Tumblr API docs for selecting the Auth type as Oauth1.0. Learn more
Consumer Key - Specify your app Consumer Key e.g. wed4MIeLqzAN
Consumer Secret - Specify your app Consumer Secret e.g. tXSycAAeOVwV
Encode the parameters in the Authorization header - Not selected (Required if your app auth requires encoded parameters in the Authorization header.)
Signature Method - HMAC-SHA1
Set App Auth Parameters - Specify if app auth requires to pass the query or URL parameters e.g. subdomain.
Received App Auth Parameters - Specify if you need to catch the parameters from access token JSON to use further in API requests e.g. oauth_access_token and oauth_token_secret.

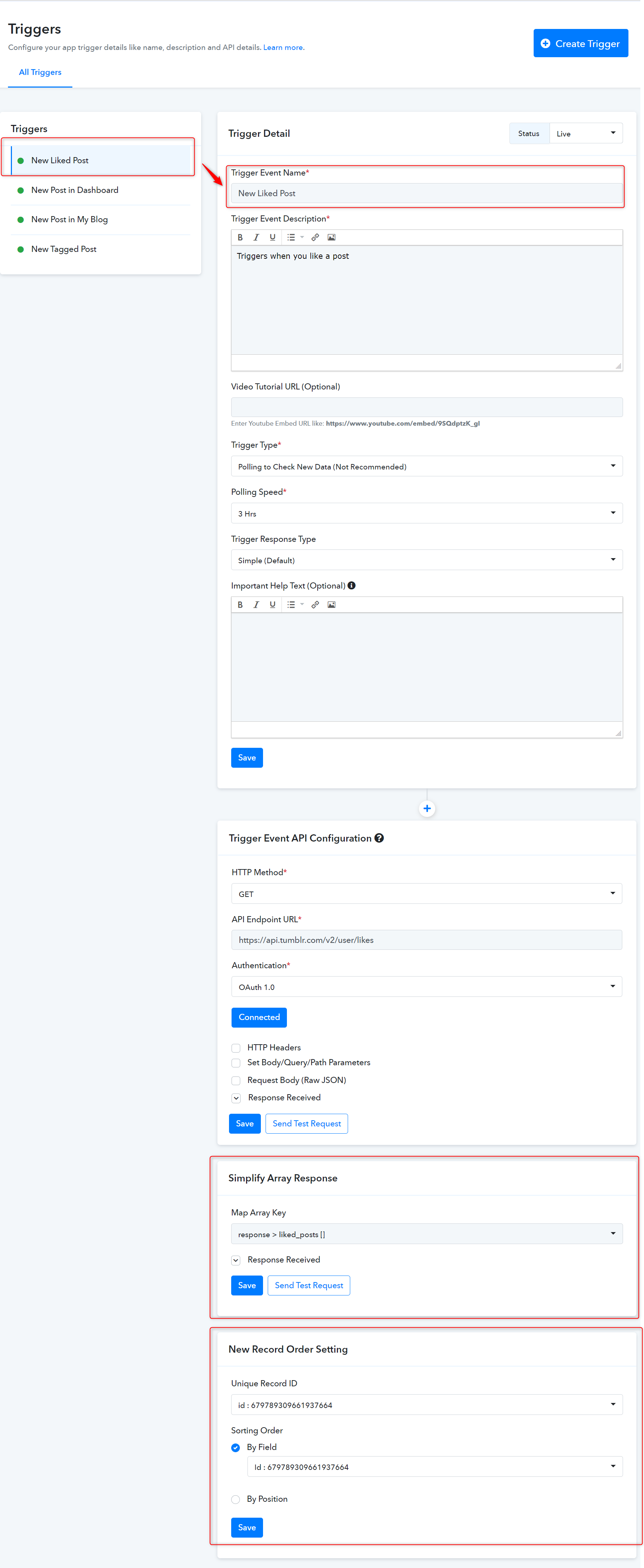

How to Configure Trigger Events:
Trigger name - New Liked Post
Type - Polling based.
In the above screenshot, we have used the Get method for trigger configuration by polling method.
After that, set the Request Body JSON.
Save and Send the test request and fetch the response.
Simplify Array Response allows you to choose an array key from the above step and simplify the array response in the key-value pair.

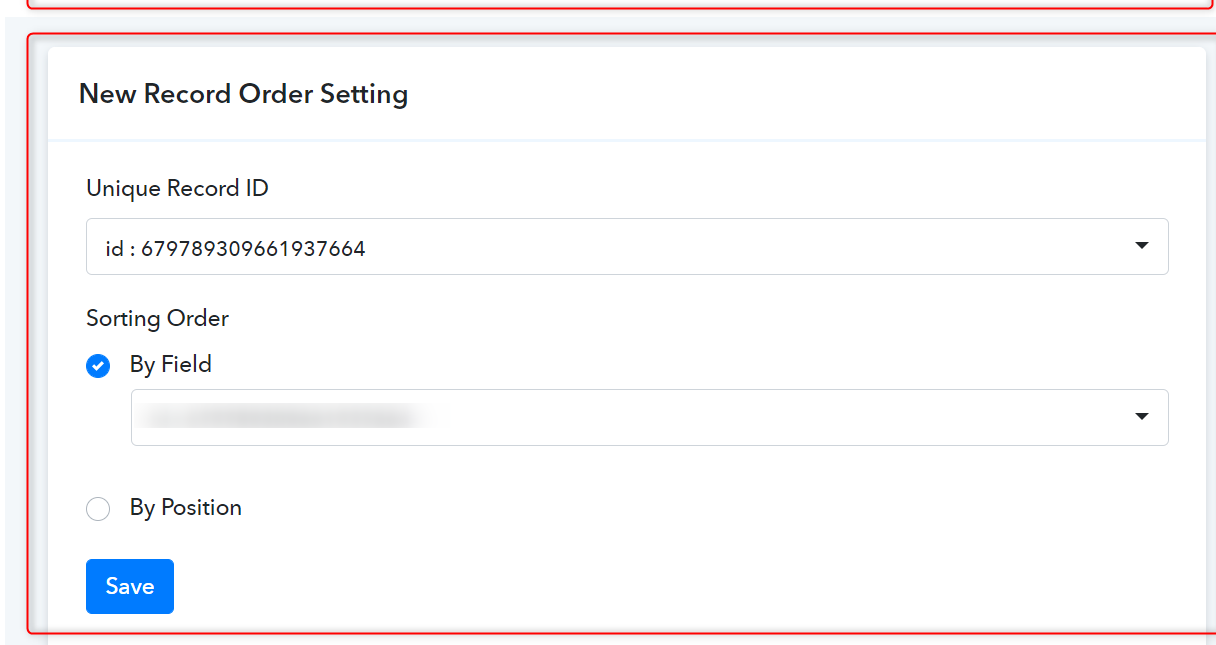

The New Record Order Setting section as shown below allows you to tell Pabbly Connect about how it can recognize the fetched record is new.
Unique Record ID: Choose a unique record ID from the received response of the above step that uniquely identifies the new record.
Sorting Order: Since the fetched records may be single or a bunch so, it is important to identify the record as new it may be based on any specific field of the new data like date value. Based on its value, the system compares the old data with this one and processes it for triggering if it finds any difference.
In case, there is no such field value present in the response, you can opt for By Position and locate the new record's presence either at the top or at the bottom of the bunch of JSON responses.

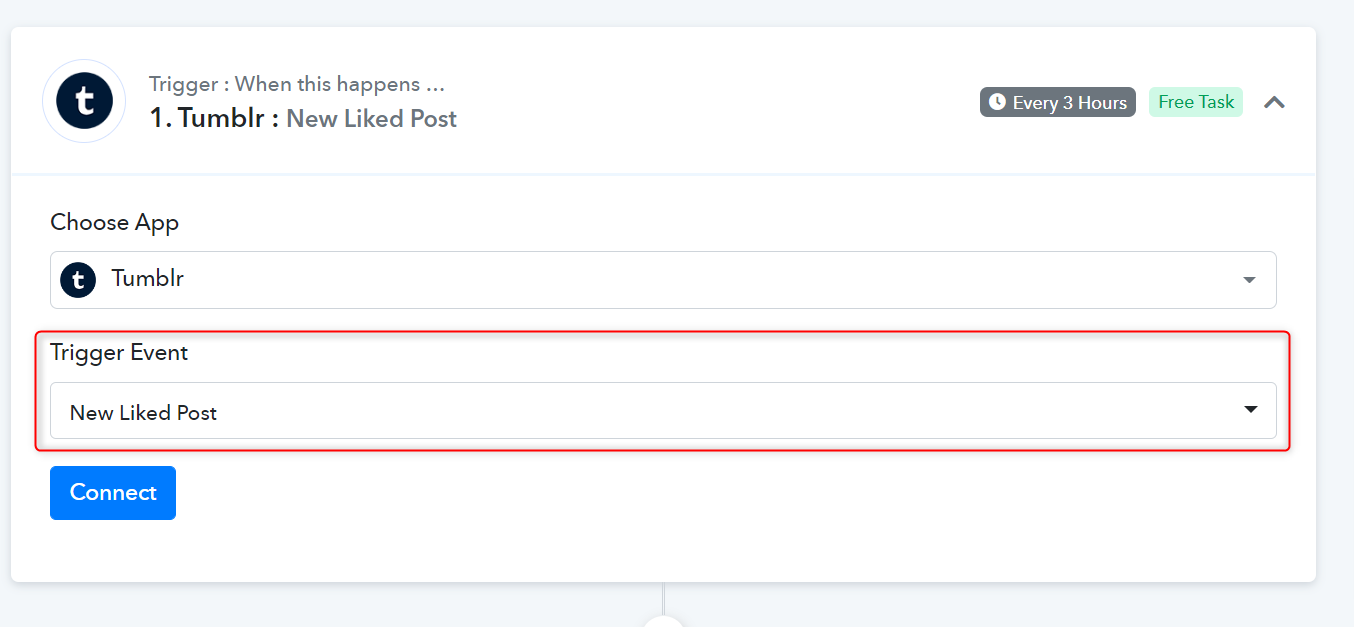

Trigger Frontend View:

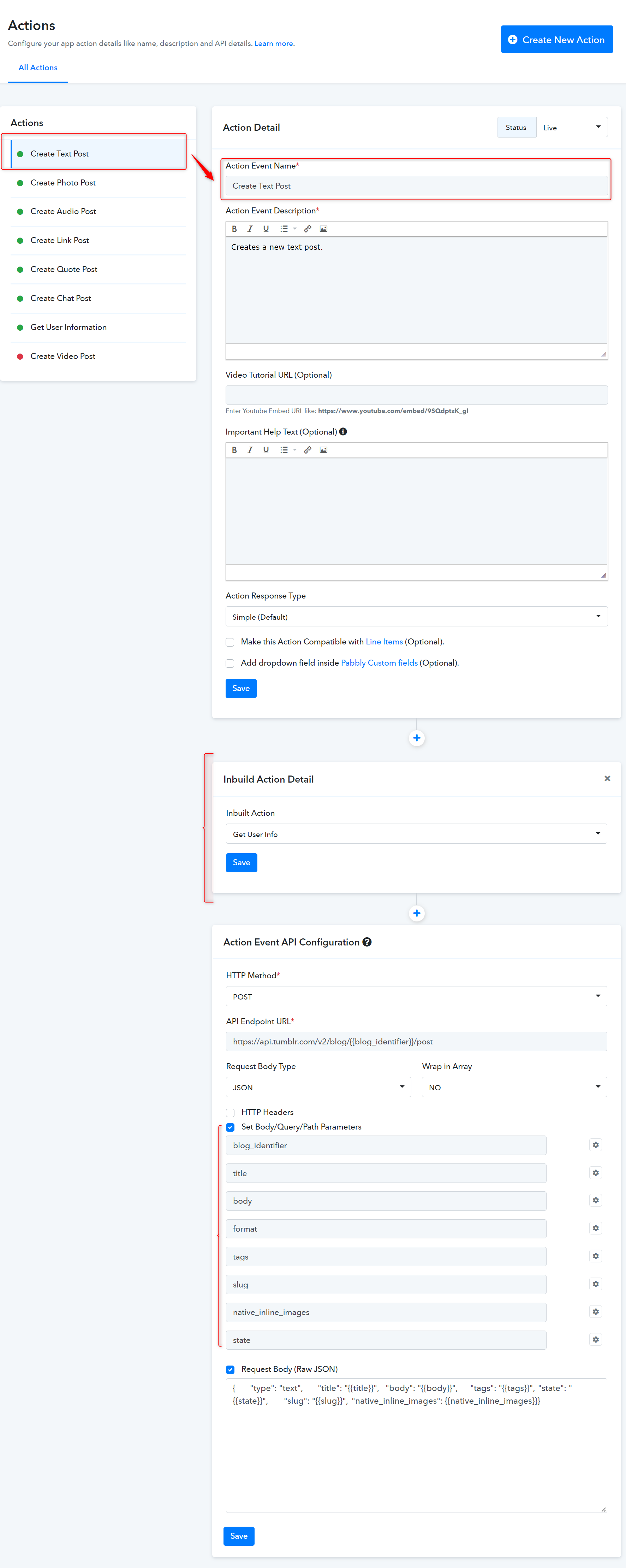

3. How to Configure Action Event: Action - Create Text Post
Action Event API Configuration with JSON Request Body Type -
Request Body Type - Specify a request body type to request this action event. By default, it is JSON.
Wrap in Array - Specify if your request raw JSON needs to be wrapped in an array or not.
Set Body/Query Parameters - Set parameters if this action event requires passing the query/URL parameters or map in request raw JSON e.g. native_inline_images
Request Body (Raw JSON) - Select this if this action event requires passing the raw JSON data. If used in endpoints, all variables defined under the Set parameters option should have the required option opted. (Some API accepts blank values for JSON keys).
Now, select the available inbuilt action events from the dropdown field as shown below:

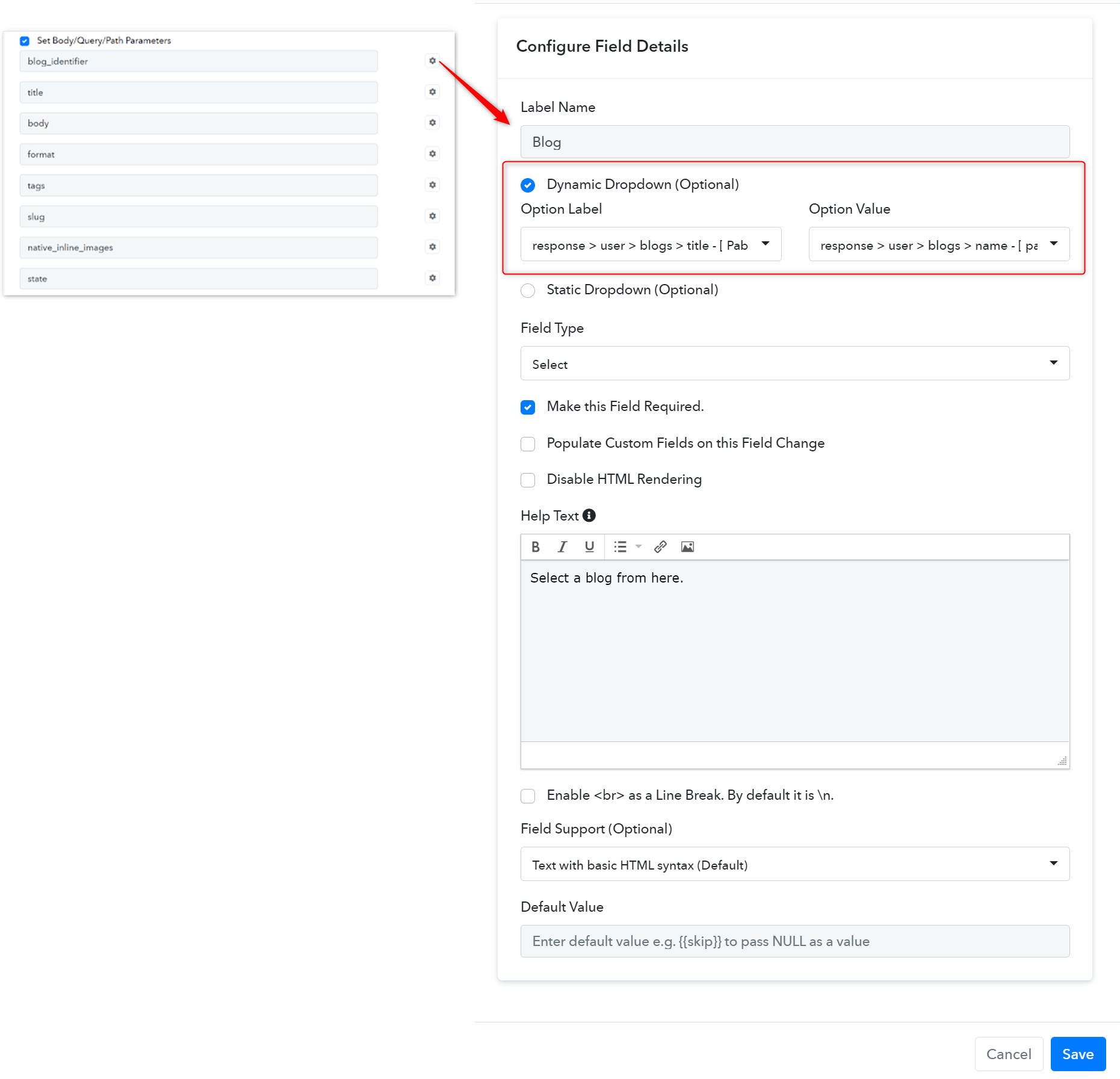

👉 blog_identifier parameter is set as a Dynamic dropdown field.

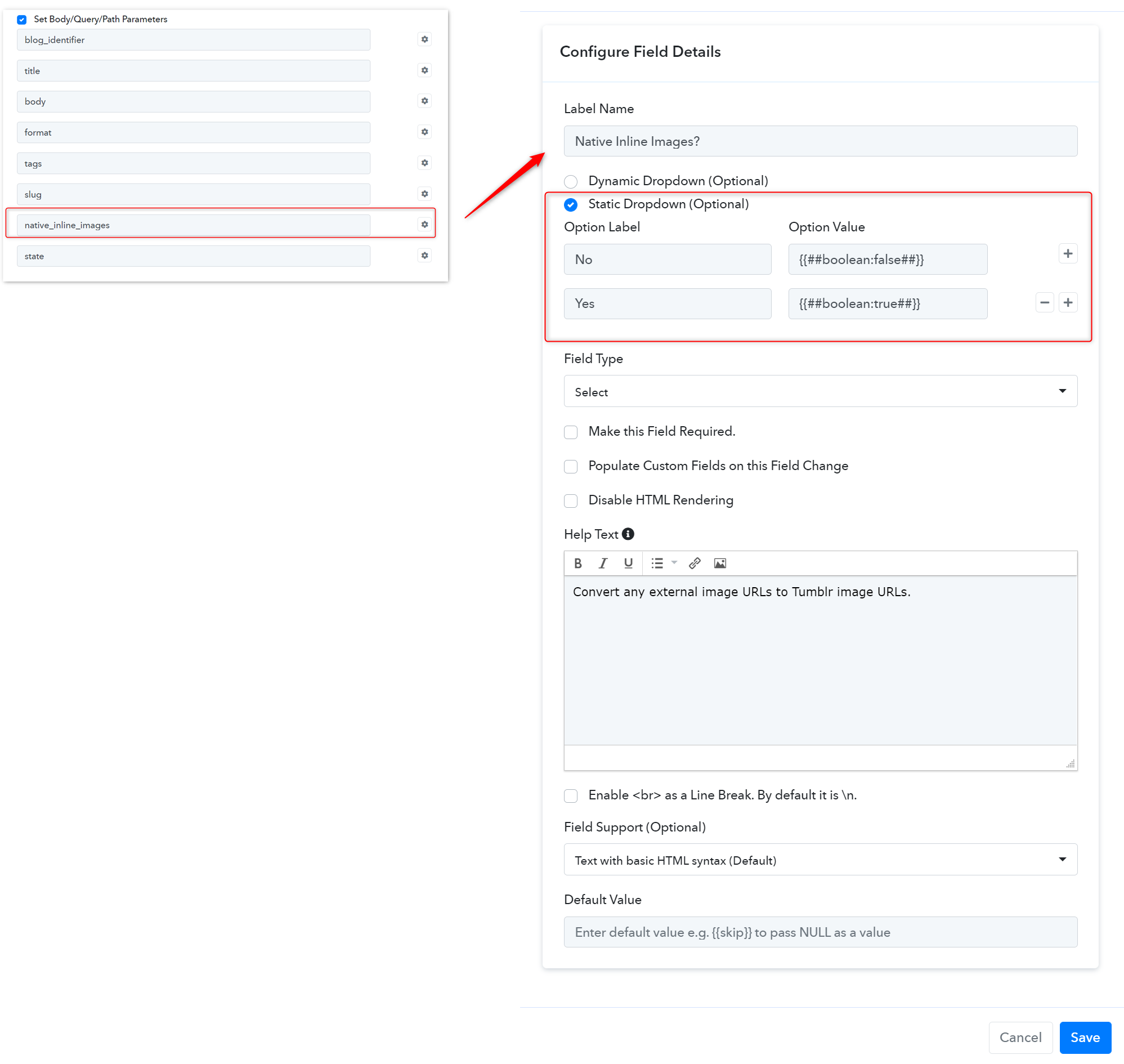

👉 native_inline_images parameter is set as a Static dropdown field i.e. Yes/No.

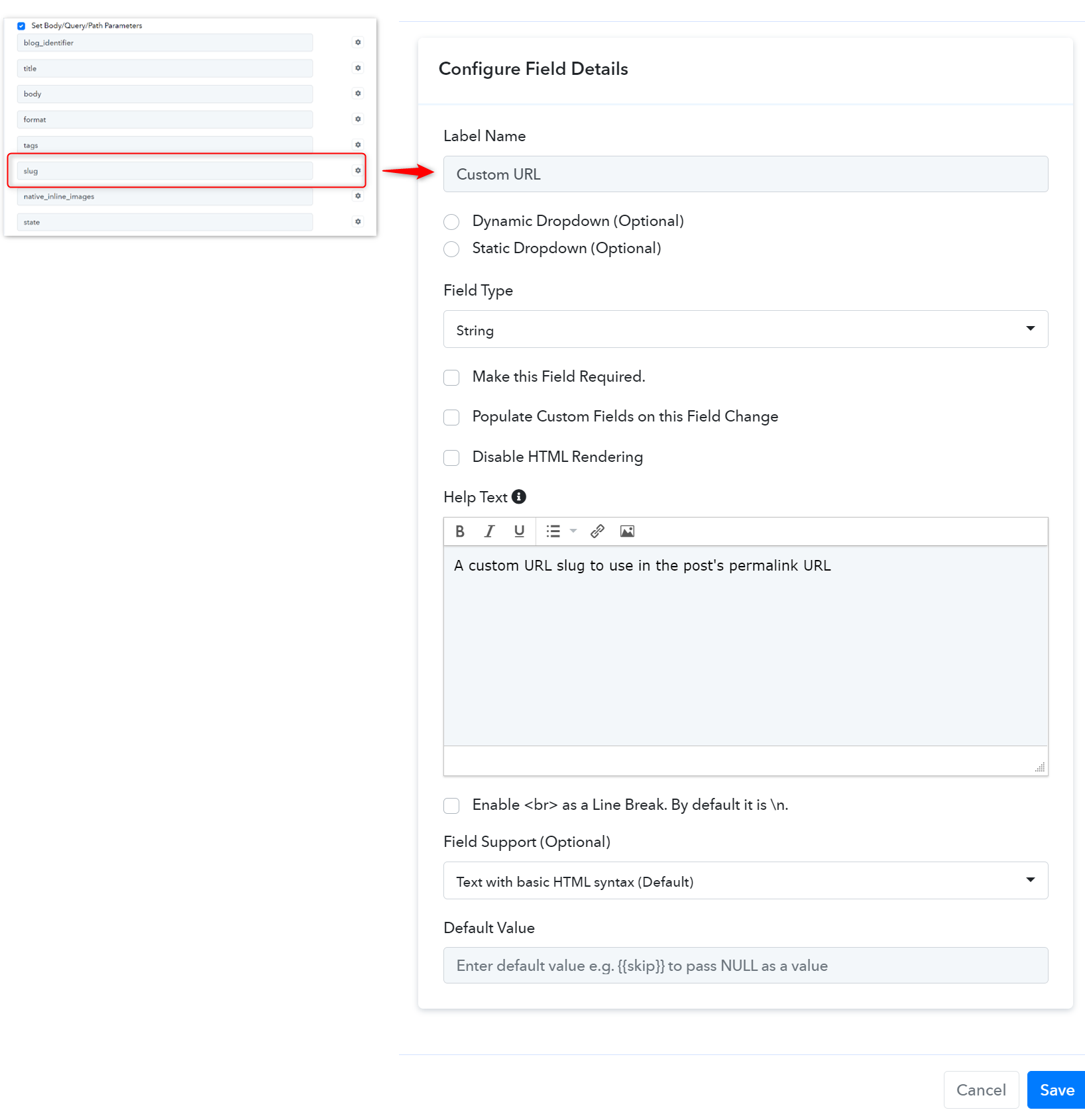

👉 Rest all the parameters are set as the basic input field.

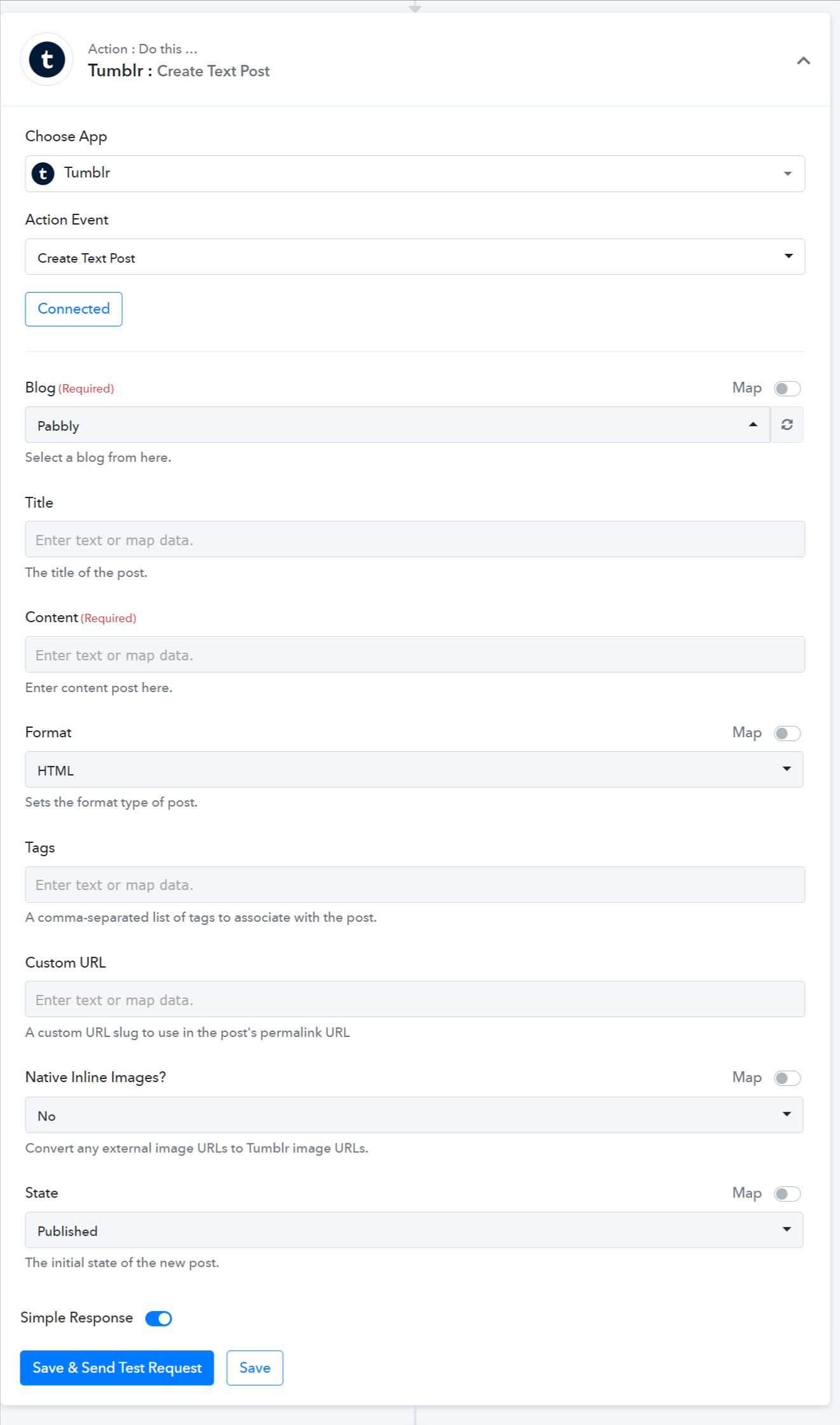

Action Frontend View:
👉For further details, refer to this guide for creating new actions and triggers in your application. Learn more 👉Refer to the video below for instructions on creating your app with a similar authentication type: Learn more
